Item# SU-4

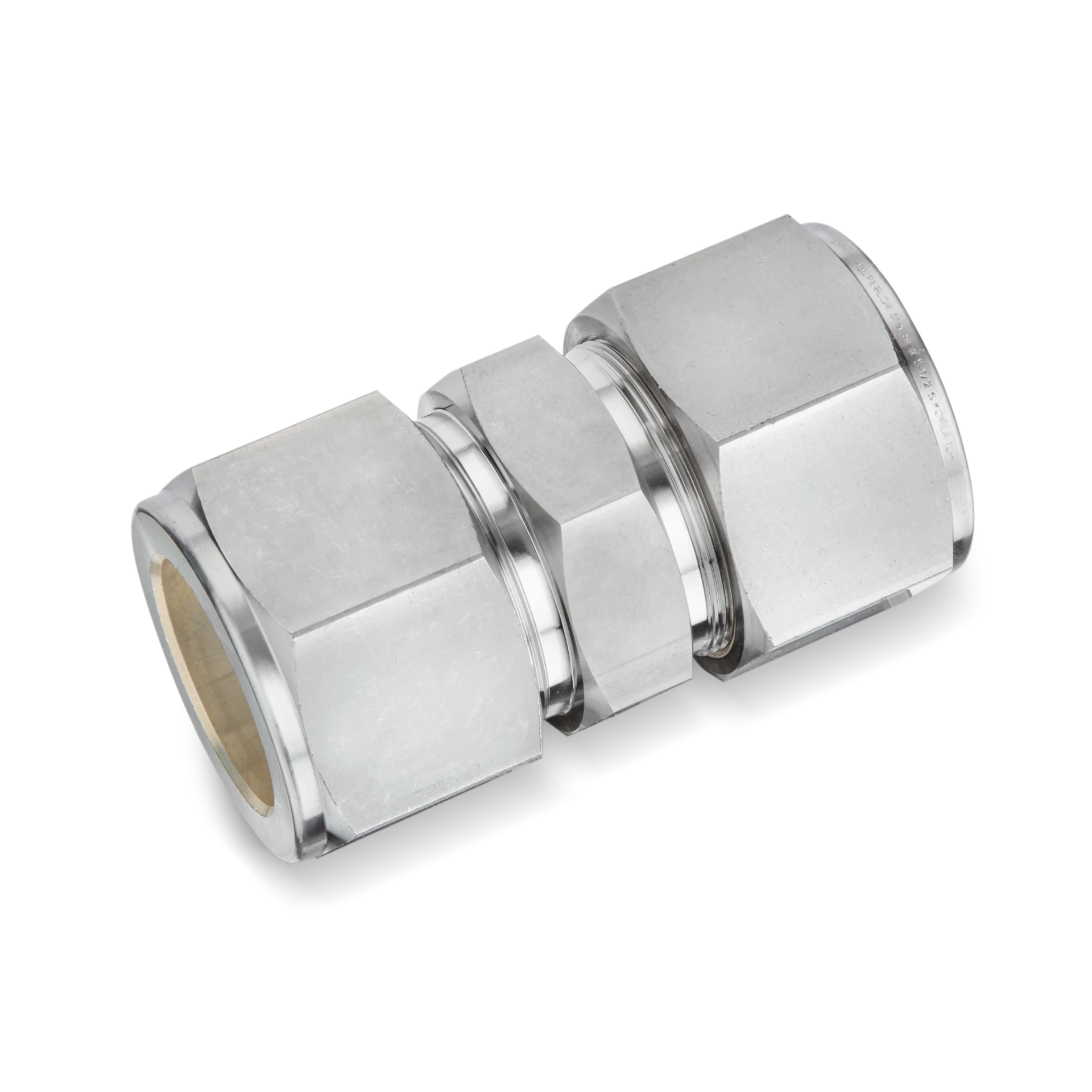

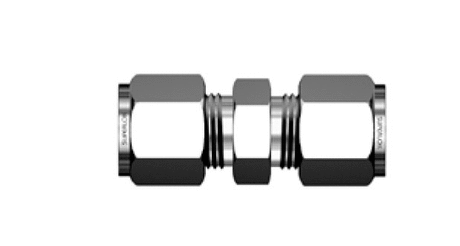

SU 1/4 in. Tube Outside Diameter D Union

SU-4
SU TUBE FITTING
SU Unions - 2
Specifications
Part Number
SU-4
Brand
Superlok®
Description
SU 1/4 in. Tube Outside Diameter D Union
Inch/Metric
Inch

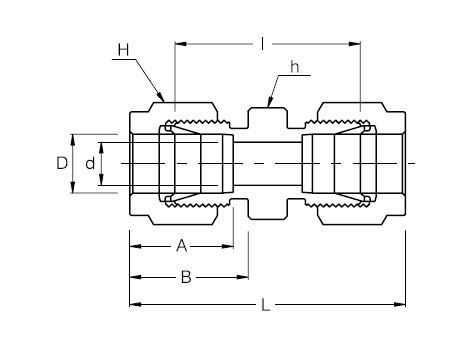

Dimensions
Dimension A
15.24 mm
Dimension B
17.78 mm
Dimension I
26.16 mm
Dimension L
40.89 mm
Dimension d [Min]
4.82 mm
Tube Outside Diameter D
1/4 in
mm
Width Across Flats H
9/16 in
Width Across Flats h
1/2 in
