Item# STV3A-S-6

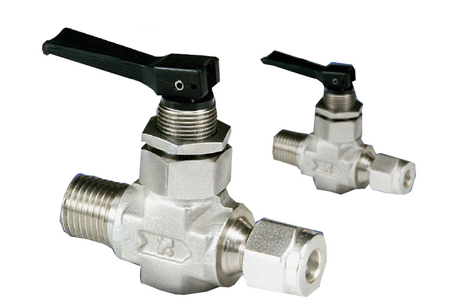

STV 1/8 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve
Compact design. Quick acting. Orifice sizes from 0.080 to 0.250 in.(2.0 to 6.4 mm). Flow coefficients (Cv) from 0.11 to 0.70. Straight, angle flow patterns. Superlok® tube fitting, male and female NPT, and Combination of end connections. Each and every valve is tested at the factory.
Specifications
Part Number
STV3A-S-6
Brand
Superlok®
Inch/Metric
Inch
Series
STV
Description
STV 1/8 in. Tube Outside Diameter, Angle Pattern, 300 psi Working Pressure Toggle Valve
End Type
End Type 2
Flow Coefficient
0.7

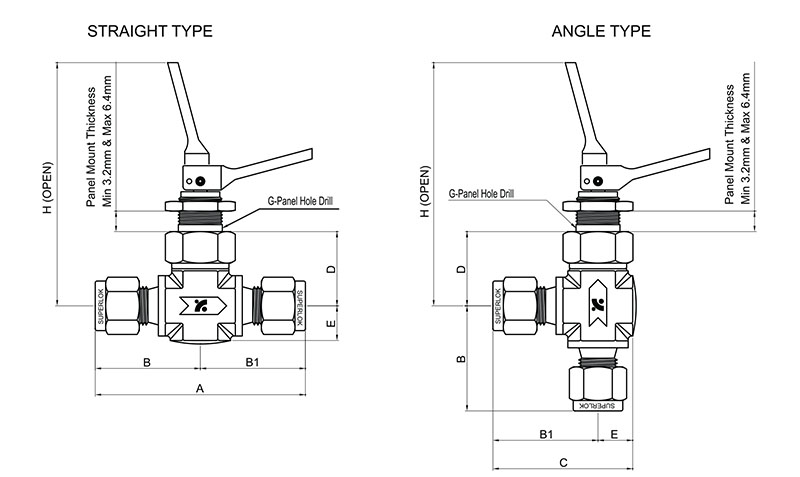

Dimensions
Dimension A
65.5 mm
Dimension B
32.8 mm
Dimension B1
32.8 mm
Dimension C
45.5 mm
Dimension D
26.9 mm
Dimension E
12.7 mm
Dimension G
16.8 mm
Dimension H
90.4 mm
End Size
44263 in
End Size 2
44263 in
Operating Temperature [Max]
93 ºC
200 ºF
Operating Temperature [Min]
-28 ºC
-20 ºF
Orifice
0.250 in
6.4 mm
Pressure [Max]
13.7 bar
200 psig
