Item# SR 2-6

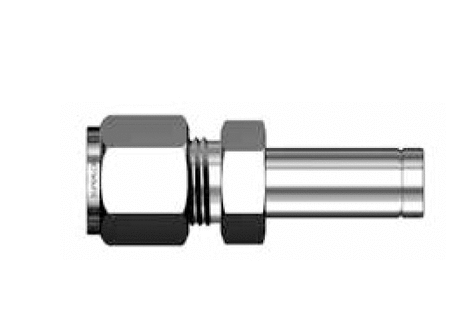

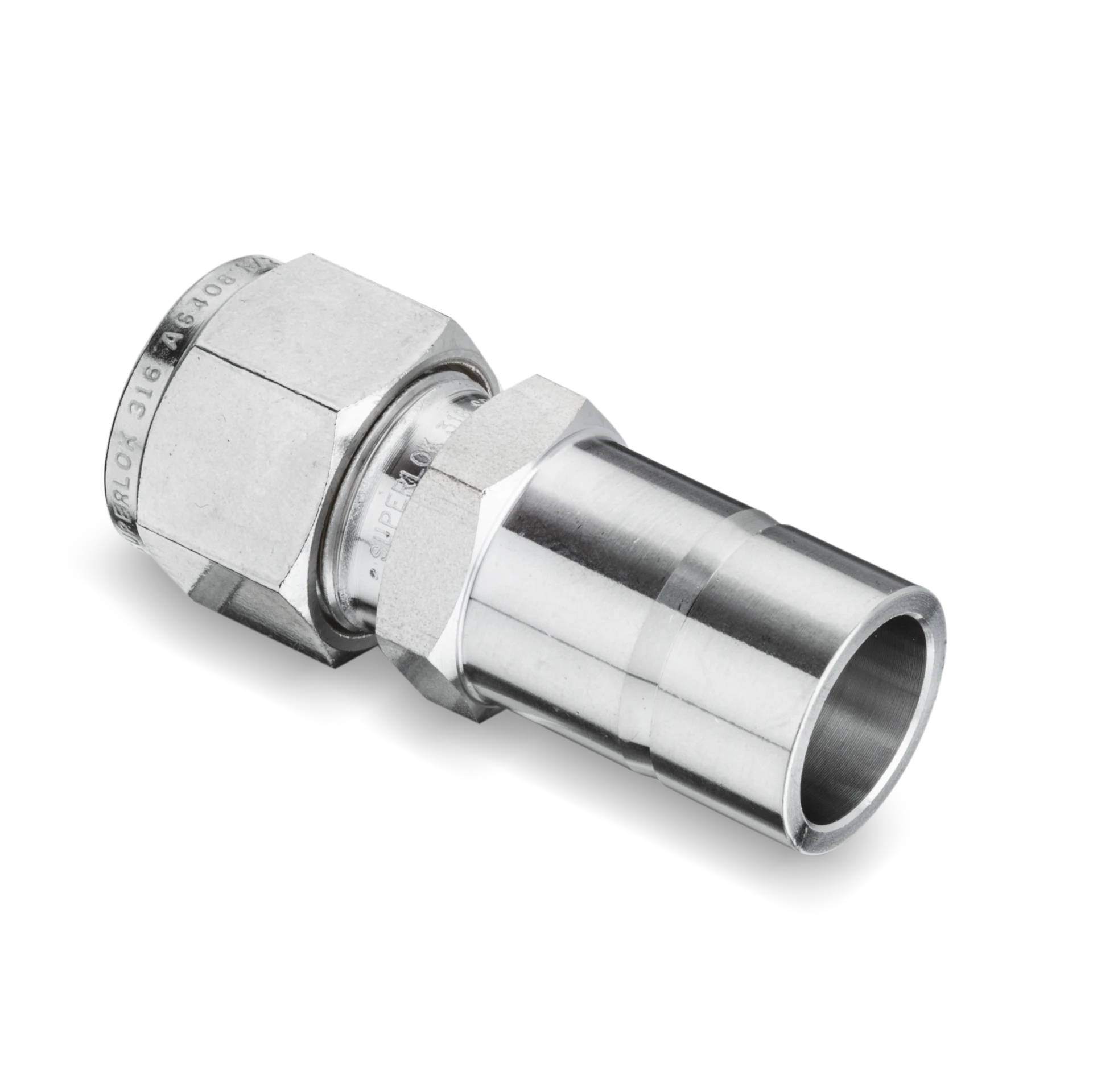

SR 1/8 in. Tube Outside Diameter DX 3/8 in. Tube Stub Reducer
Downloads
Specifications
Part Number
SR 2-6
Brand
Superlok®
Material
316 Stainless Steel
Description
SR 1/8 in. Tube Outside Diameter DX 3/8 in. Tube Stub Reducer
Inch/Metric
Inch

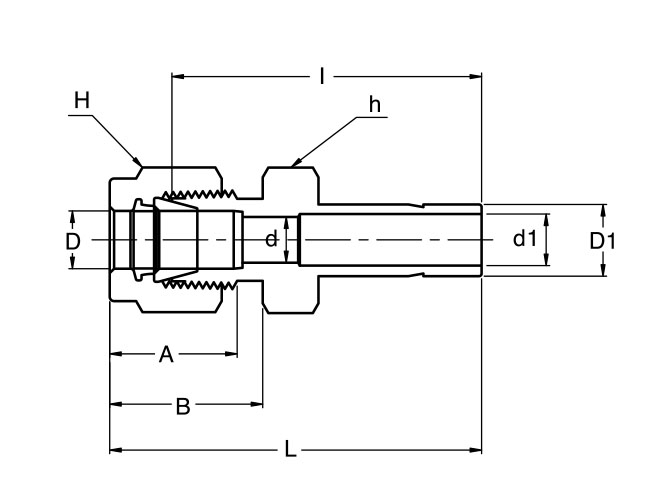

Dimensions
Dimension A
12.70 mm
Dimension B
15.24 mm
Dimension I
30.98 mm
Dimension L
37.59 mm
Dimension d [Min]
2.28 mm
Dimension d1 [Min]
6.9 mm
Tube Outside Diameter D
1/8 in
mm
Tube Outside Diameter D1
3/8 in
Width Across Flats H
7/16 in
mm
Width Across Flats h
7/16 in
mm
