Item# SQC3B-S8

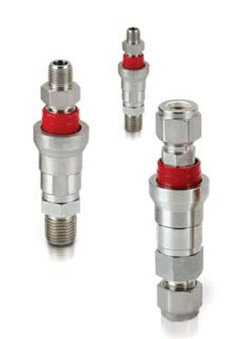

SQC 1/2 in. x 1/2 in. Tube Outside Diameter Quick Connect Body
Simple push-pull action to connect and disconnect lines-no tools required. Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Downloads
Specifications
Part Number
SQC3B-S8
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Brass
Description
SQC 1/2 in. x 1/2 in. Tube Outside Diameter Quick Connect Body
End Type
Dimensions
Dimension B
78.5 mm
Dimension H
30.7 mm
End Size
44198 in
Flow [Max]
10 gpm
37 L/min
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature
17.2 bar
250 psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature
51.6 bar
750 psig
Spillage
3.0 cm³
