Item# SQC1P-S4-DO

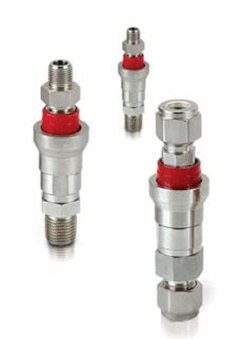

SQC 1/4 in. x 1/4 in. Tube Outside Diameter Quick Connect Stem (DESO)
Simple push-pull action to connect and disconnect lines-no tools required. Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Downloads
Specifications
Part Number
SQC1P-S4-DO
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Brass
Plug Series
DO
Cv Coefficient
0.2
Description
SQC 1/4 in. x 1/4 in. Tube Outside Diameter Quick Connect Stem (DESO)
End Type

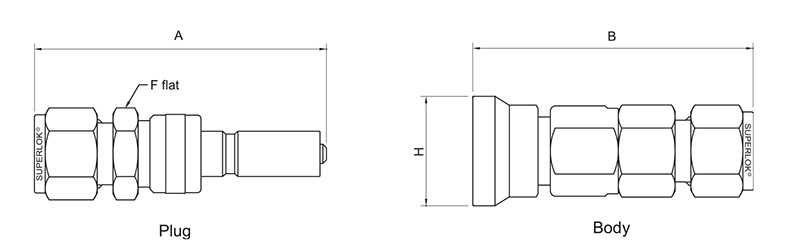

Dimensions
Dimension A
61.5 mm
Dimension F
15.9 mm
End Size
44200 in
Flow [Max]
4 gpm
15 L/min
Insertion Depth
1.15 in
29.2 mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature
17.2 bar
250 psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature
206 bar
3000 psig
Spillage
0.3 cm³
