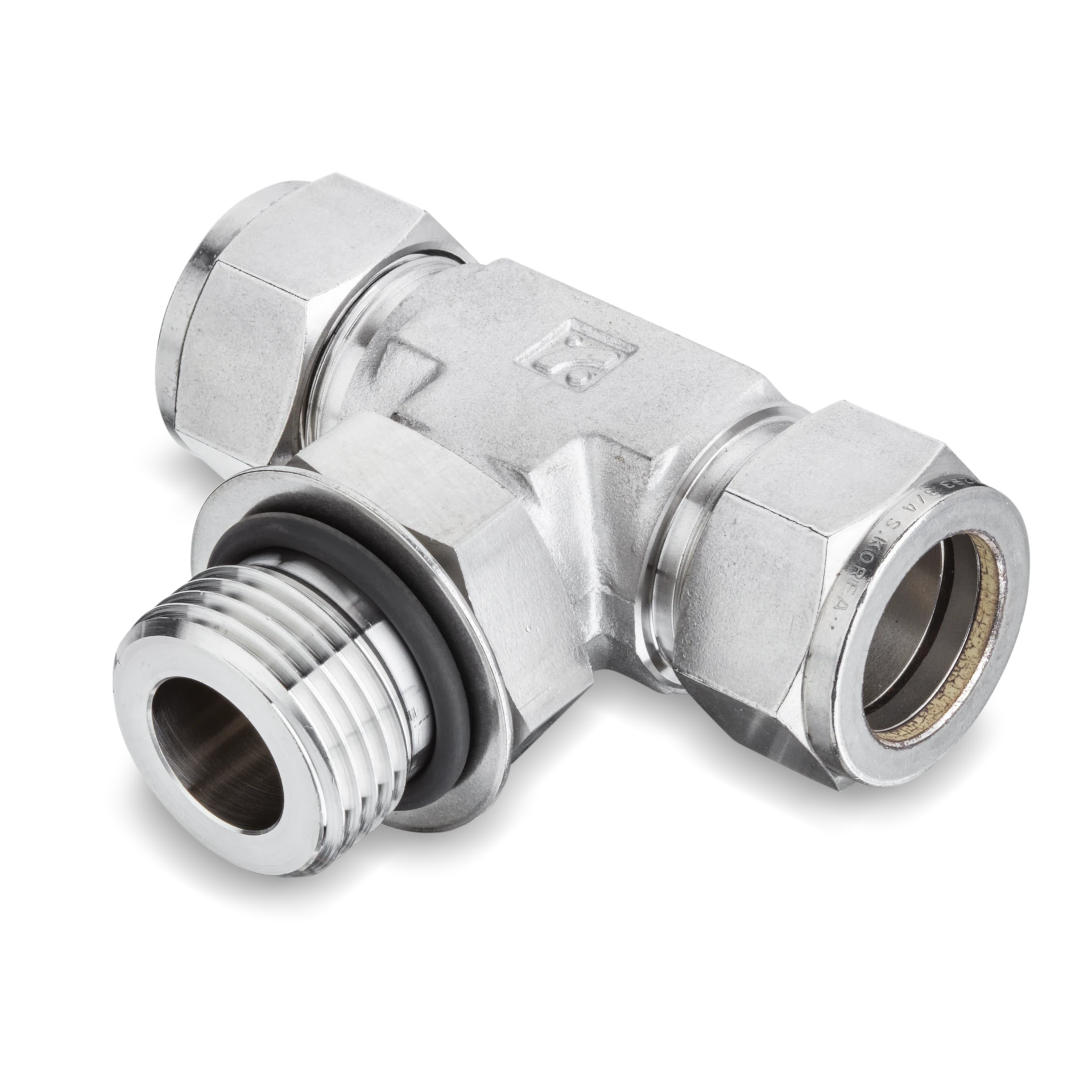

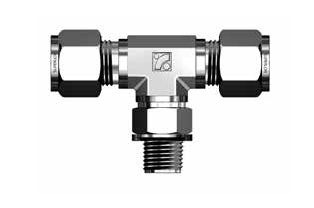

Item# SPMBT 16-16U
SPMBT 1 in. Tube Outside Diameter D x 1-5/16-12 Society of Automotive Engineering (SAE) Straight Thread Positionable Male Branch Tee with O-Ring
Specifications
Part Number
SPMBT 16-16U
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SPMBT 1 in. Tube Outside Diameter D x 1-5/16-12 Society of Automotive Engineering (SAE) Straight Thread Positionable Male Branch Tee with O-Ring
End Type
Society of Automotive Engineering (SAE)/MS Straight Thread
Industry Standards/Certifications
Dimensions
Dimension A
31.24 mm
Dimension B
26.42 mm
Dimension C
43.94 mm
Dimension I
38.35 mm
Dimension L
50.55 mm
Dimension L1
53.59 mm
Dimension d [Min]
22.35 mm
End Size
1-5/16-12 in
Tube Outside Diameter D
in
1 mm
Width Across Flats H
in
1-1/2 mm
Width Across Flats h1
1-3/8 in
Width Across Flats h2
1-1/2 in
