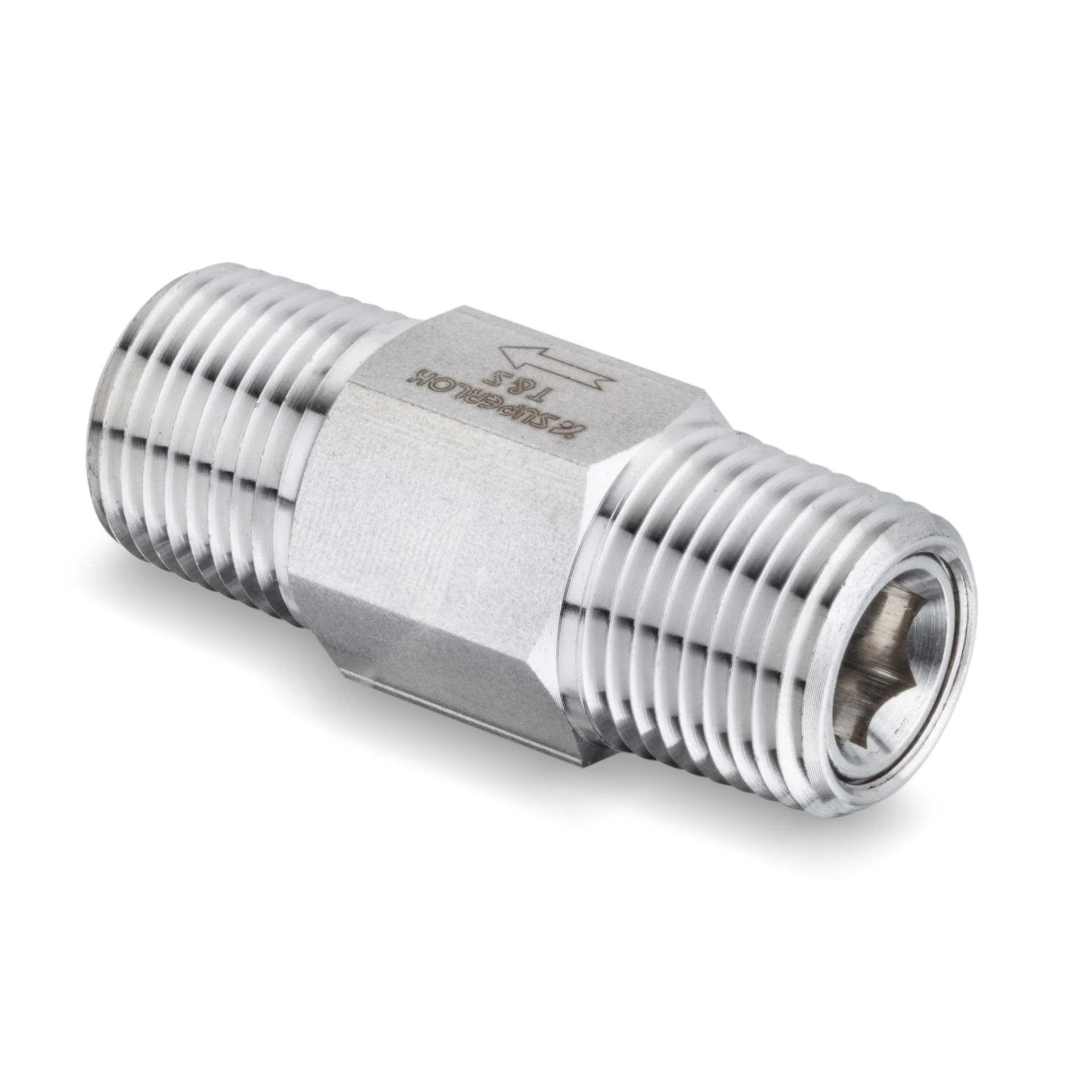

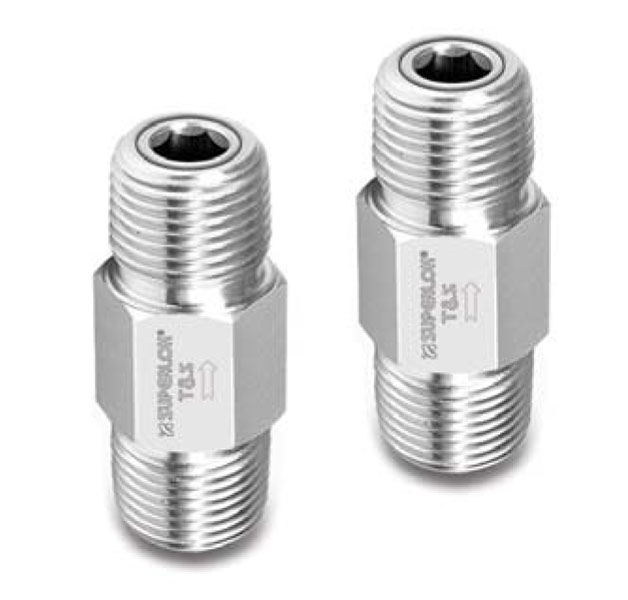

Item# SOCV3-M-8N-5P
SOCV 1/2 in. Male National Pipe Taper (MNPT), #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
Pressure rating up to 6,000 psig (413 bar) at 100 ºF (37 ºC) Temperature rating up to 375 ºF (190 ºC) with Fluorocarbon (FKM) seal standard Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar) Variety of end connections 316 stainless steel body material as standard Each and every valve is tested at the factory
Specifications
Part Number
SOCV3-M-8N-5P
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Brass
Series
SOCV
Cv Coefficient
1.2
Description
SOCV 1/2 in. Male National Pipe Taper (MNPT), #25 psi Nominal Cracking Pressure Spring, 3000 psi Working Pressure One Piece Check Valve
End Type
Female National Pipe Thread (FNPT)
End Type 2
Female National Pipe Thread (FNPT)
Dimensions
Back Pressure at 70 (20 ºC) Temperature
206 bar
3000 psig
Dimension A
57.9 mm
Dimension h (HEX)
7/8 in
22.2 mm
Inlet
1/2 mm
Nominal Cracking Pressure
bar
psig
Operating Pressure [Min]
206 bar
3000 psig
Outlet
1/2 mm
Temperature Rating for Fluorocarbon (FKM)
-23 to 190 ºC
-10 to 375 ºF
Temperature Rating for Nitrile Butadiene Rubber
-23 to 121 ºC
-10 to 250 ºF
