Item# SMPWE-8-8P

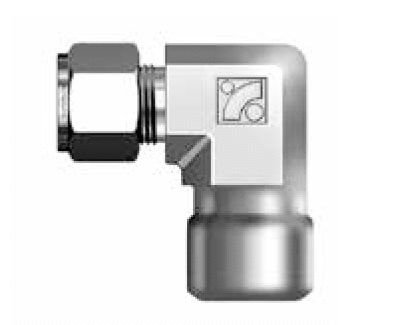

SMPWE Male Pipe Weld Elbows, Connects Fractional Tubes to Pipe
Downloads
Specifications
Part Number
SMPWE-8-8P
Brand
Superlok®
Description
SMPWE Male Pipe Weld Elbows, Connects Fractional Tubes to Pipe
Inch/Metric
Inch
Material
316 Stainless Steel
Dimensions
Angle
90 º
Dimension A
22.86 mm
Dimension B
21.84 mm
Dimension I
25.90 mm
Dimension I1
19.05 mm
Dimension L
36.06 mm
Dimension L1
33.02 mm
Dimension d [Min]
10.41 mm
Outside Diameter Pipe Size (P)
21.30 mm
Size
44198 mm
Tube Outside Diameter D
1/2 in
Width Across Flats H
7/8 in
Width Across Flats h
13/16 in
