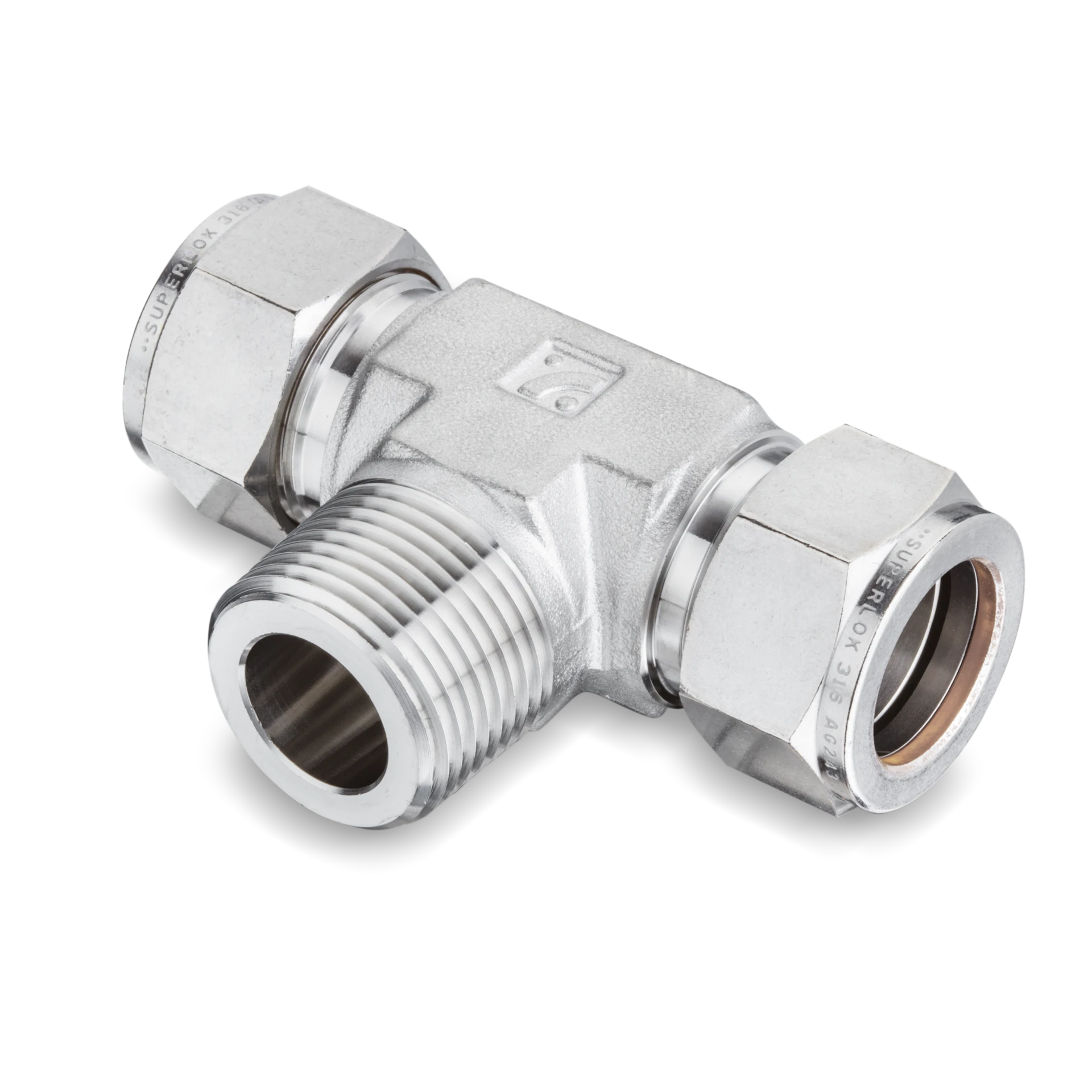

Item# SMBT 4-2N
SMBT 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
Specifications
Part Number
SMBT 4-2N
Brand
Superlok®
End Type
National Pipe Thread (NPT)
Inch/Metric
Inch
Industry Standards/Certifications
American National Standards Institute (ANSI) B1.20.1
Material
316 Stainless Steel
Description
SMBT 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
Dimensions
Dimension A
15.24 mm
Dimension B
17.78 mm
Dimension I
19.55 mm
Dimension L
26.92 mm
Dimension L1
18.79 mm
Dimension d [Min]
4.82 mm
End Size
44204 in
Tube Outside Diameter D
1/4 in
Width Across Flats H
9/16 in
Width Across Flats h
1/2 in
