Item# SMA 12-12N

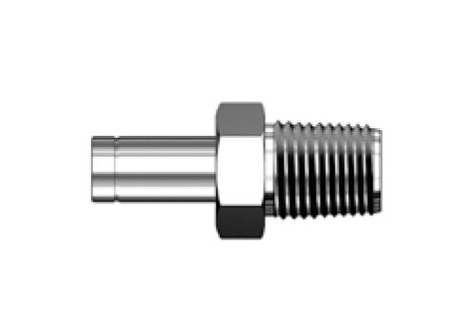

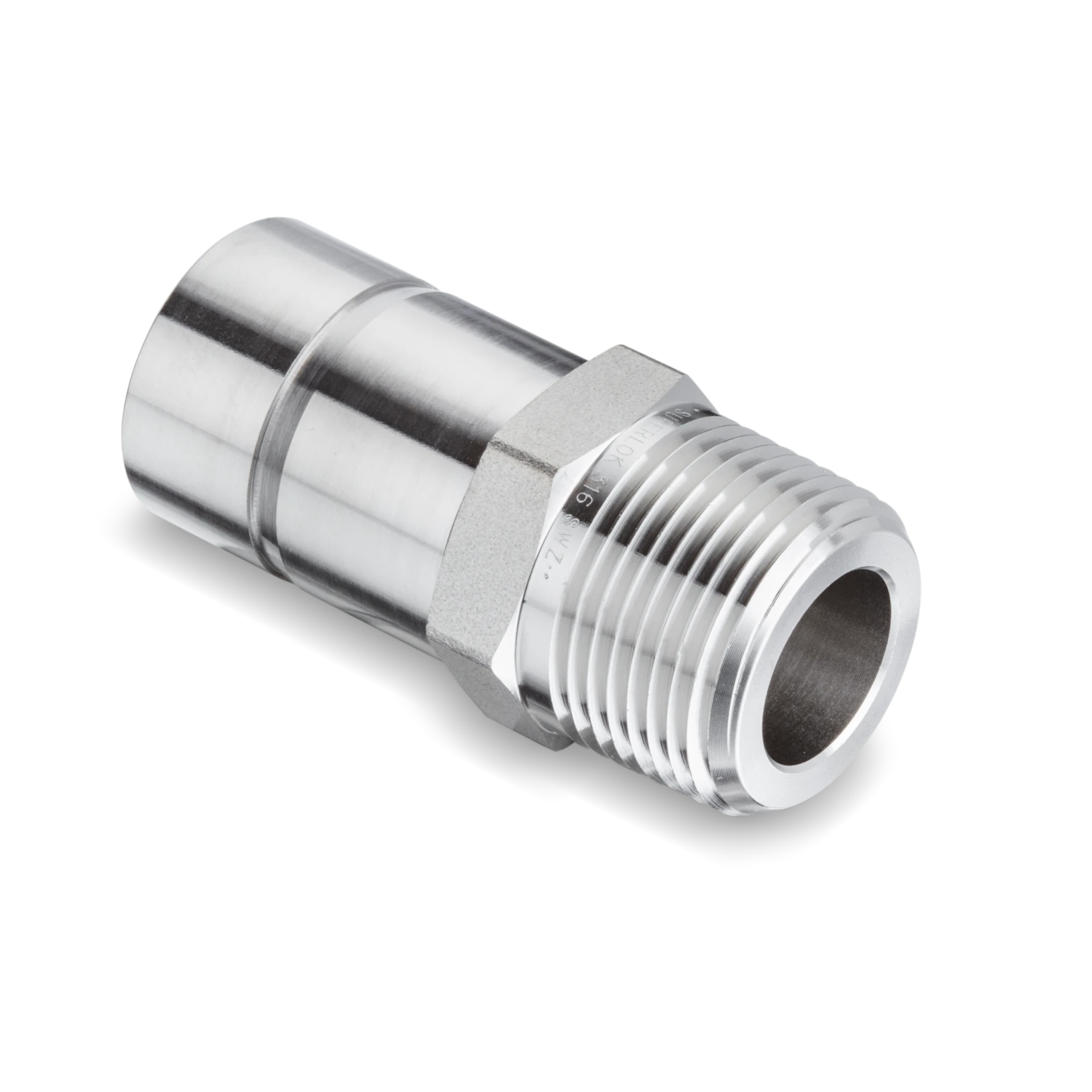

SMA 3/4 in. Tube Stub x 3/4 in. Male National Pipe Taper (MNPT) Male Adapter
Specifications
Part Number
SMA 12-12N
Brand
Superlok®
End Type
Male National Pipe Thread (NPT)
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SMA 3/4 in. Tube Stub x 3/4 in. Male National Pipe Taper (MNPT) Male Adapter

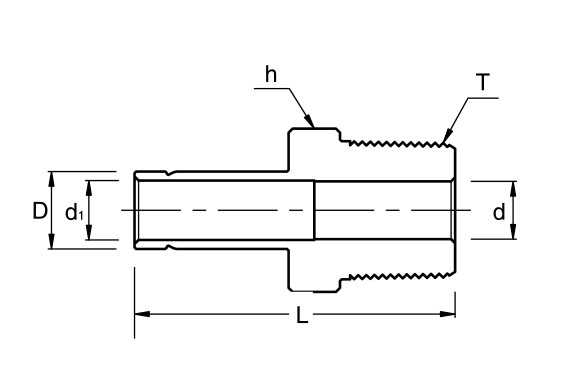

Dimensions
Dimension L
52.3 mm
Dimension d [Min]
14.8 mm
Dimension d1
14.80 mm
End Size
44259 in
Tube Outside Diameter D
3/4 in
Width Across Flats h
1-1/16 in
