Item# SINV2-M-4N-RS

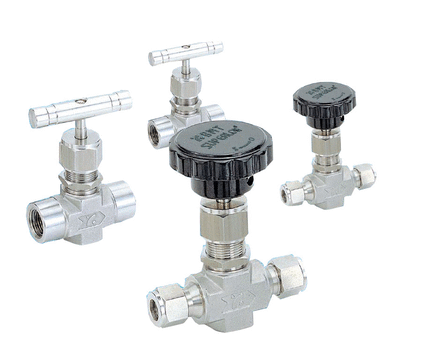

SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
Compact design Low operating torques Panel mountable Variety of stem tips Variety of End Connections Straight and Angle flow patterns Each and every valve is tested at the factory
Specifications
Part Number
SINV2-M-4N-RS
Brand
Superlok®
Body Material
316 Stainless Steel, Alloy 400, Brass
Inch/Metric
Inch
Series
SINV
Cv Coefficient
0.37
Description
SINV 1/4 in. Male National Pipe Taper (MNPT) Thread, Bar Handle, Regulating Stem, 5000 psi Pressure Rating Needle Valve
End Type
Male National Pipe Thread (MNPT)
End Type 2
Male National Pipe Thread (MNPT)
Dimensions
Dimension A
24.9 mm
Dimension B
24.9 mm
Dimension B1
24.9 mm
Dimension C
34.6 mm
Dimension D
11.2 mm
Dimension E
9.7 mm
Dimension F
45.0 mm
Dimension H
51.5 mm
Dimension I
13.5 mm
Dimension L
49.8 mm
End Size
44200 in
End Size 2
44200 in
Orifice Diameter
4.4000000000000004 mm
Pressure Rating 316 Stainless Steel at 65 to 100 (-54 to 38 ºC) Temperature
bar
psig
Pressure Rating at 100 (38 ºC) Temperature
345 bar
5000 psig
Temperature Rating (316 Stainless Steel)
ºC
ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing
315 ºC
600 ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing
-54 to 232 ºC
-65 to 450 ºF
