Item# SHUE-4

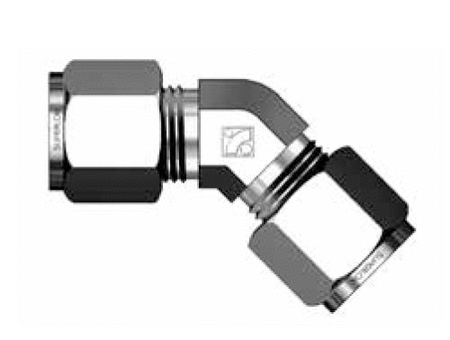

SHUE 1/4 in. Tube Outside Diameter D 45 Degree Union Elbow
Specifications
Part Number
SHUE-4
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SHUE 1/4 in. Tube Outside Diameter D 45 Degree Union Elbow
Dimensions
Angle
45 º
Dimension A
15.24 mm
Dimension B
17.78 mm
Dimension I
17.27 mm
Dimension L
24.63 mm
Dimension d [Min]
4.82 mm
Tube Outside Diameter D
1/4 in
Width Across Flats H
9/16 in
Width Across Flats h
1/2 in
