Item# SGMC 16M-8G

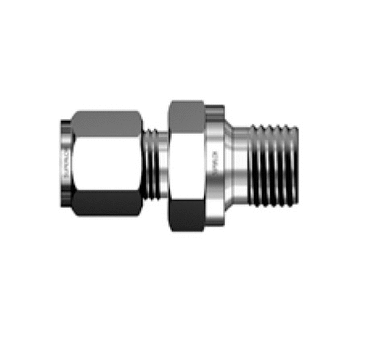

SGMC Male Connectors for bonded washer seal, Connects Metric Tubes to Female ISO Parallel Thread.
Specifications
Part Number
SGMC 16M-8G
Brand
Superlok®
Description
SGMC Male Connectors for bonded washer seal, Connects Metric Tubes to Female ISO Parallel Thread.
Inch/Metric
Metric
Material
316 Stainless Steel
Dimensions
Dimension A
24.4 mm
Dimension B
22.0 mm
Dimension I
38.9 mm
Dimension I1
14.0 mm
Dimension K
26.0 mm
Dimension L
49.0 mm
Dimension d [Min]
11.9 mm
End Size
44198 in
Tube Outside Diameter D
16 mm
Width Across Flats H
25 mm
Width Across Flats h
27.0 mm
