Item# SFQC2-PP

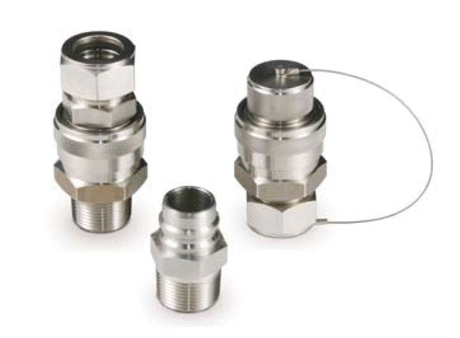

SFQC Full Flow Quick Connect Plug Protectors
Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling
Downloads
Specifications
Part Number
SFQC2-PP
Brand
Superlok®
Description
SFQC Full Flow Quick Connect Plug Protectors
Inch/Metric
Inch
Material
316 Stainless Steel, Brass
Dimensions
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature
6.8 bar
100 psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature
413 bar
6000 psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature
6.8 bar
100 psig
