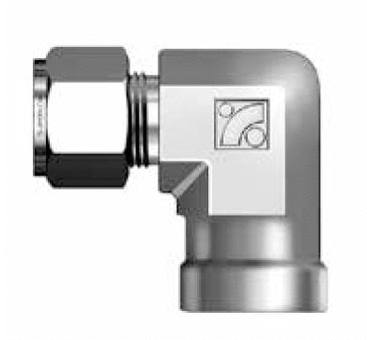

Item# SFE 8-8N
SFE 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
Specifications
Part Number
SFE 8-8N
Brand
Superlok®
End Type
Male National Pipe Thread (NPT)
Material
316 Stainless Steel
Description
SFE 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread T 90 Degree Female Elbow
Inch/Metric
Inch

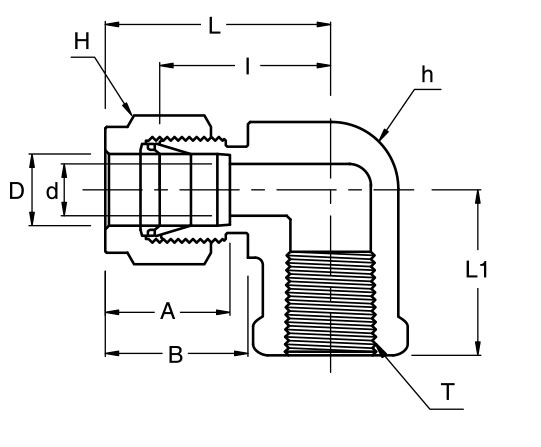

Dimensions
Angle
90 º
Dimension A
22.86 mm
Dimension B
21.84 mm
Dimension I
28.70 mm
Dimension L
38.86 mm
Dimension L1
37.00 mm
Dimension d [Min]
10.41 mm
End Size
44198 in
Tube Outside Diameter D
1/2 in
mm
Width Across Flats H
7/8 in
mm
Width Across Flats h
1 in
mm
