Item# SFC 2-4N

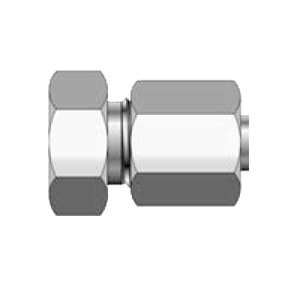

SFC 1/8 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Female Connector

SFC 2-4N
SFC TUBE FITTING
SFC Female Connectors - 2
Specifications
Part Number
SFC 2-4N
Brand
Superlok®
End Type
National Pipe Thread (NPT)
Inch/Metric
Inch
Material
316 Stainless Steel
Description
SFC 1/8 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Female Connector
Dimensions
Dimension A
12.70 mm
Dimension B
15.24 mm
Dimension I
26.92 mm
Dimension L
33.52 mm
Dimension d [Min]
2.28 mm
End Size
44200 in
Tube Outside Diameter D
1/8 in
Width Across Flats H
7/16 in
Width Across Flats h
3/4 in
