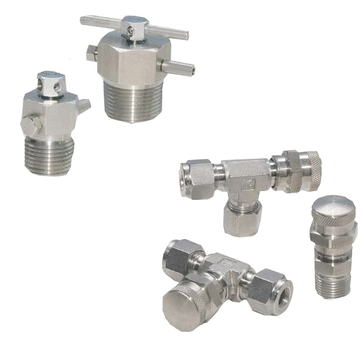

Item# SBLV-M-8N
SBLV 1/2 in. Male National Pipe Taper (MNPT), Back-Stop Screw, Vent Tube Inlet End Connection Type Bleed Valve
Compact for convenient installation. Back stop screw prevents accidental removal of stem. Chrome-plated stem threads and tip improves valve life. Male NPT or ISO Thread end connection.
Specifications
Part Number
SBLV-M-8N
Brand
Superlok®
Inch/Metric
Inch
Inlet End Connection Type
Male National Pipe Thread (NPT)
Material
316 Stainless Steel
Outlet End Connection Type
Outside Diameter Tube Stub
Description
SBLV 1/2 in. Male National Pipe Taper (MNPT), Back-Stop Screw, Vent Tube Inlet End Connection Type Bleed Valve
Dimensions
Dimension A
1.47 in
37.3 mm
Dimension B
1.03 in
26.3 mm
Dimension C
0.44 in
11.2 mm
Dimension D
0.88 in
22.3 mm
Dimension H
0.875 in
22.22 mm
Inlet End Connection Size
1/2 in
Outlet End Connection Size
3/8 in
