Item# SBHU-2

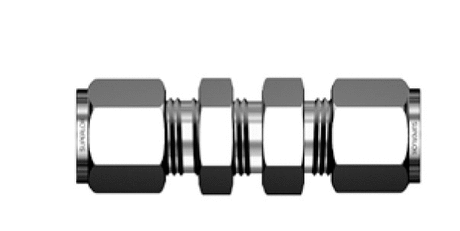

SBHU 1/8 in. Tube Outside Diameter D Bulkhead Union

SBHU-2
SBHU TUBE FITTING
SBHU Bulkhead Unions - 2
Specifications
Part Number
SBHU-2
Brand
Superlok®
Inch/Metric
Inch
Description
SBHU 1/8 in. Tube Outside Diameter D Bulkhead Union
Dimensions
Dimension A
12.70 mm
Dimension B
15.24 mm
Dimension I
38.10 mm
Dimension I1
24.63 mm
Dimension L
51.30 mm
Dimension L1
31.24 mm
Dimension d [Min]
2.28 mm
Panel Thickness [Max]
12.70 mm
Size
8.33 mm
Tube Outside Diameter D
1/8 in
Width Across Flats H
7/16 in
Width Across Flats h
1/2 in

Part#
