Item# SBHRU 6-4

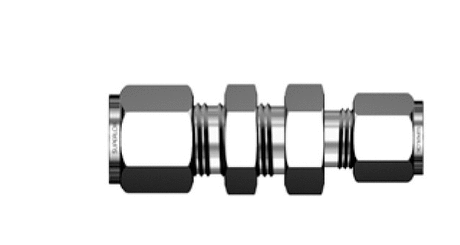

SBHRU 3/8 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Bulkhead Reducing Union
Specifications
Part Number
SBHRU 6-4
Brand
Superlok®
Inch/Metric
Inch
Description
SBHRU 3/8 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Bulkhead Reducing Union
Dimensions
Dimension A
16.76 mm
Dimension A1
15.24 mm
Dimension I
45.97 mm
Dimension I1
29.46 mm
Dimension L
60.70 mm
Dimension L1
36.57 mm
Dimension L2
17.78 mm
Dimension d [Min]
4.82 mm
Panel Thickness [Max]
11.17 mm
Size
14.68 mm
Tube Outside Diameter D
3/8 in
Tube Outside Diameter D1
1/4 in
Width Across Flats H
11/16 in
Width Across Flats H1
9/16 in
Width Across Flats h
3/4 in
