Item# IRT-6N

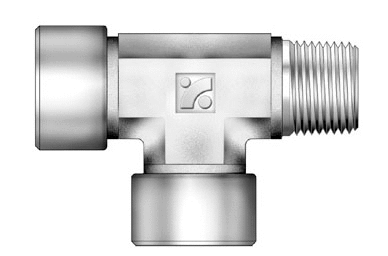

IRT 3/8 in. Female National Pipe Taper (FNPT) x Male National Pipe Taper (MNPT) x Female National Pipe Taper (FNPT) Pipe Size Run Tee
Downloads
Specifications
Part Number
IRT-6N
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Steel
Description
IRT 3/8 in. Female National Pipe Taper (FNPT) x Male National Pipe Taper (MNPT) x Female National Pipe Taper (FNPT) Pipe Size Run Tee
Size
44263
Dimensions
Dimension A
62.7 mm
Dimension E
9.6 mm
Dimension H
20.6 mm
Dimension L
34.5 mm
Dimension S
28.2 mm
Pressure Rating (Brass)
192 bar
2800 psig
Pressure [Max]
385 bar
5600 psig
