Item# IFC-4N

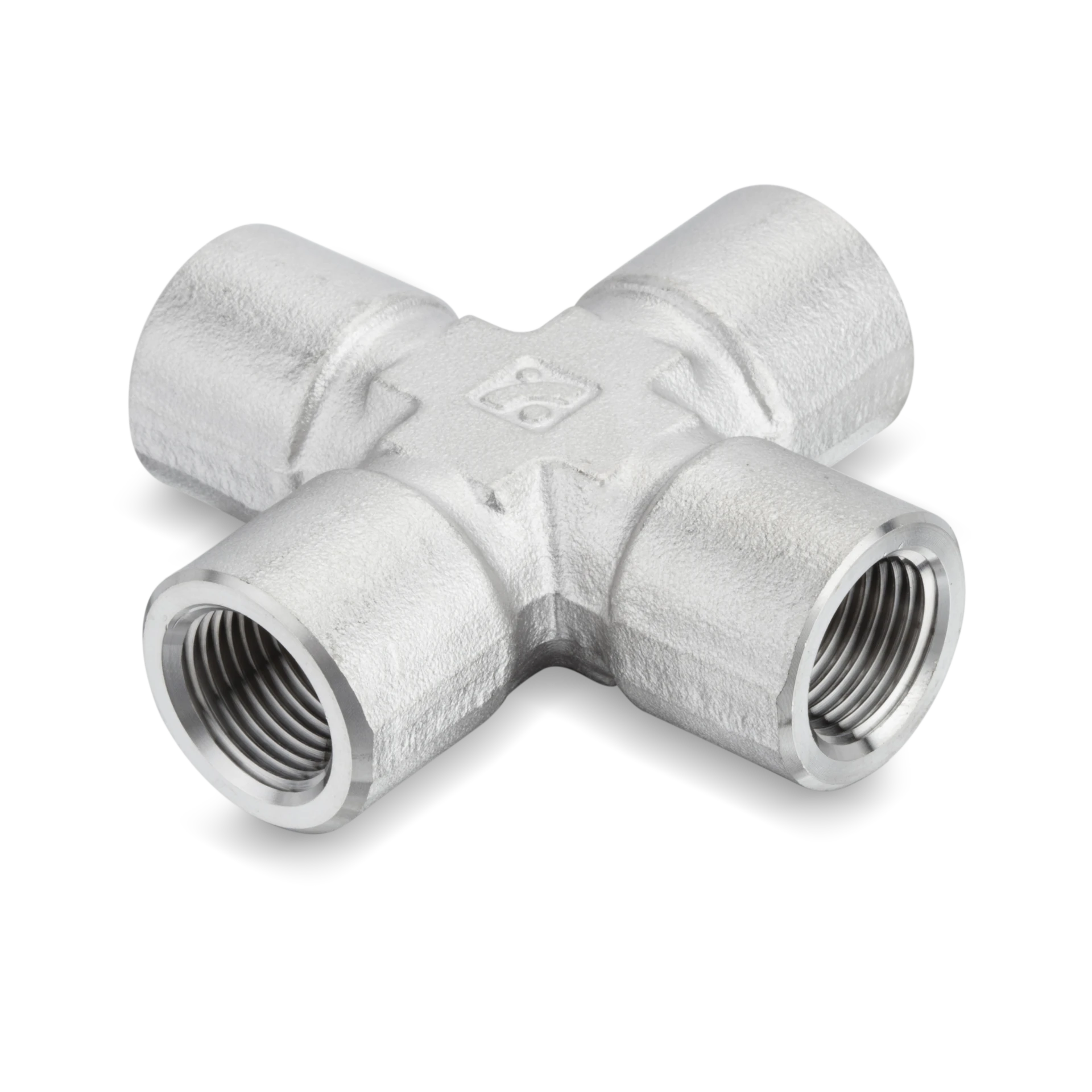

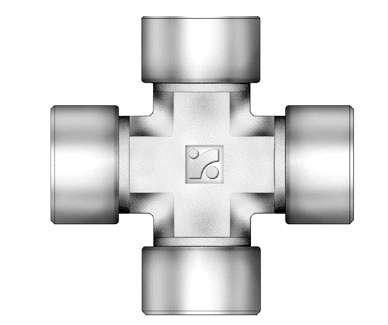

IFC 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Female Cross

Downloads
IFC-4N
IFC PIPE FITTING
IFC Female Crosses - 2
Specifications
Part Number
IFC-4N
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Steel
Description
IFC 1/4 in. Female National Pipe Taper (FNPT) Thread Pipe Size Female Cross

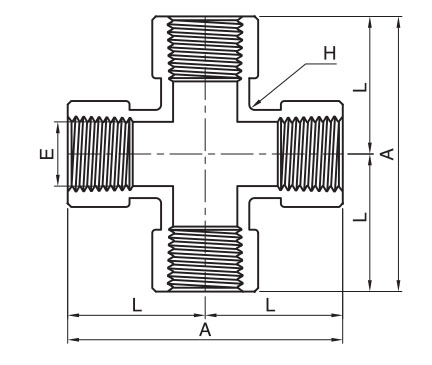

Dimensions
Dimension A
58.0 mm
Dimension E
11.4 mm
Dimension H
17.5 mm
Dimension L
29.0 mm
Pressure Rating (Brass)
248 bar
3600 psig
Pressure [Max]
496 bar
7200 psig
Size
44200 mm

Part#
